Salient Features

The moulded panel doors and flush doors are manufactured using HDF skins,and a special designer door core from Europe with kiln dried solid wood for the stiles and rails.
Jacdoors are Hot Pressed and hence delamination free.
Doors in different sizes are offered to suit to different openings.
100% QC check by experienced QC specialists.

Veneered Flush Doors

Veneered Doors Horizontal Grains

00010

Veneered Doors Vertical Grains

HPL Laminated Doors

LS 101.jpg

LS 102.jpg

LS 103.jpg

LS 104.jpg

LS 105.jpg

Specifications:

Available Sizes:

Height Min.mm	Height Max.mm	Width Min.mm	Width Max.mm	Thickness mm
1850	2400	600	1200	32/35/40

Stiles and Rails: Kiln dried solid wood.
Face and Back: Veneered HDF Skin.
Core: Tubular SauerLand Core or Honey Comp Core.
Veneer Species: All veneers in the Jacveneer Range.

JACDOOR

(High Quality and Factory Made)

Strong eco-friendly doors

Available Sizes

Thickness: 6mm, 9mm, 12mm, 17mm and 18mm
Length X Breadth: 2440mm X 1220mm

Moulded Panel Doors

Specifications:

Jacdoor Moulded Panel Doors:

Design and Sizes:

Designs	Height Min.mm	Height Max.mm	Width Min.mm	Width Max.mm	Thickness mm
2 Panel-Crown	1900	2140	560	1000	32/35/40
3 panel-Oval	1900	2140	730	860	32/35/40
4 Panel-Imperial	1900	2140	560	1000	32/35/40
6 Panel Tudor	1900	2140	600	1050	32/35/40
Horizon	1900	2140	660	1910	32/35/40
Extra Height 2 panel	2150	2190	800	950	35/40
Extra Height 6 panel	2150	2190	800	970	35/40

Stiles and Rails: Kiln Dried Solid Wood
Face and Back: Moulded HDF Primed Skin
Core: Tubular SauerLand Core or Honey Comp Core.
Veneer Species: All veneers in the Jacveneer Range.

Optional Value Added Services:

PVC Edge Banding
Lock Hole Boring
Hinge Ribate Cutting
UV Lacquer polish
PU Painting for Moulded Panel Doors and HDF commercial Doors
Glass opening
Magic eye hole Boring
Grooving (4mm wide X 1.5mm Depth)

Jacwud Veneered Moulded Panel Doors:

Available Sizes:

Designs	Height Min.mm	Height Max.mm	Width Min.mm	Width Max.mm	Thickness mm
2 Panel	1900	2145	750	1000	32/35/40
6 Panel	1900	2145	750	900	32/35/40
Extra Height 2 panel	2150	2300	850	1050	40

Stiles and Rails: Kiln Dried Solid Wood
Face and Back: Veneered Moulded HDF Primed Skin
Core: Tubular SauerLand Core or Honey Comp Core.
Veneer Species: Teak wood and American walnut. For Extra Height 2 Panel, only teakwood veneer

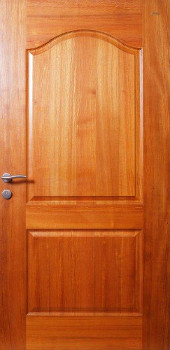

Teakwood

Teakwood

american walnut.jpg

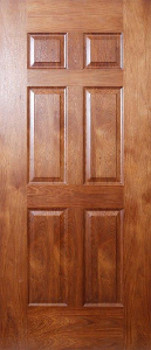

American Walnut
